Description
Geberit Duofix UP320 Toilet Support Frame with Concealed Cistern (111.300.00.5)
Key Features:
- Self-supporting, powder-coated frame

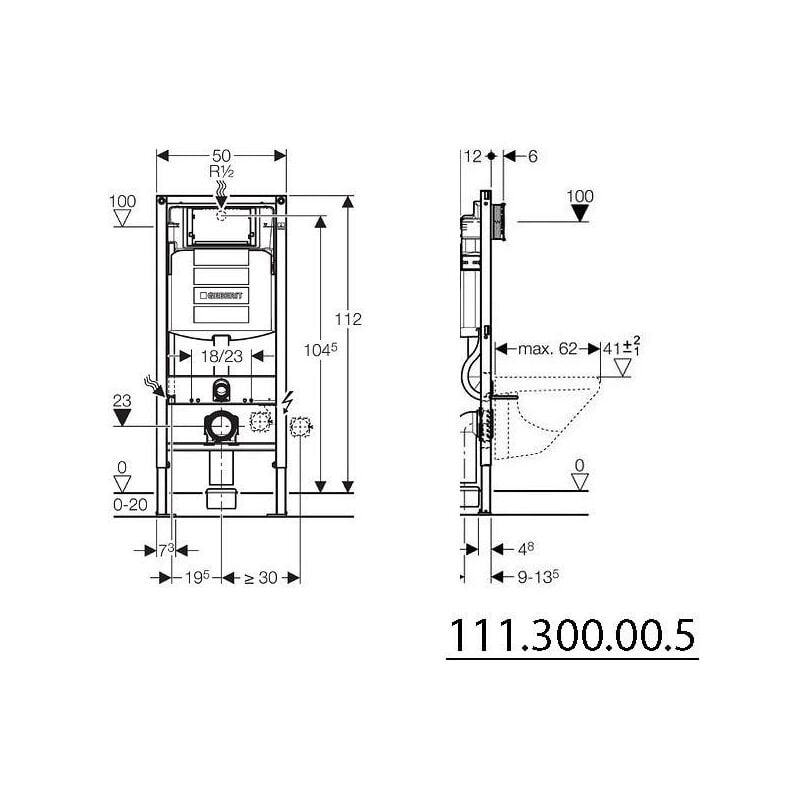

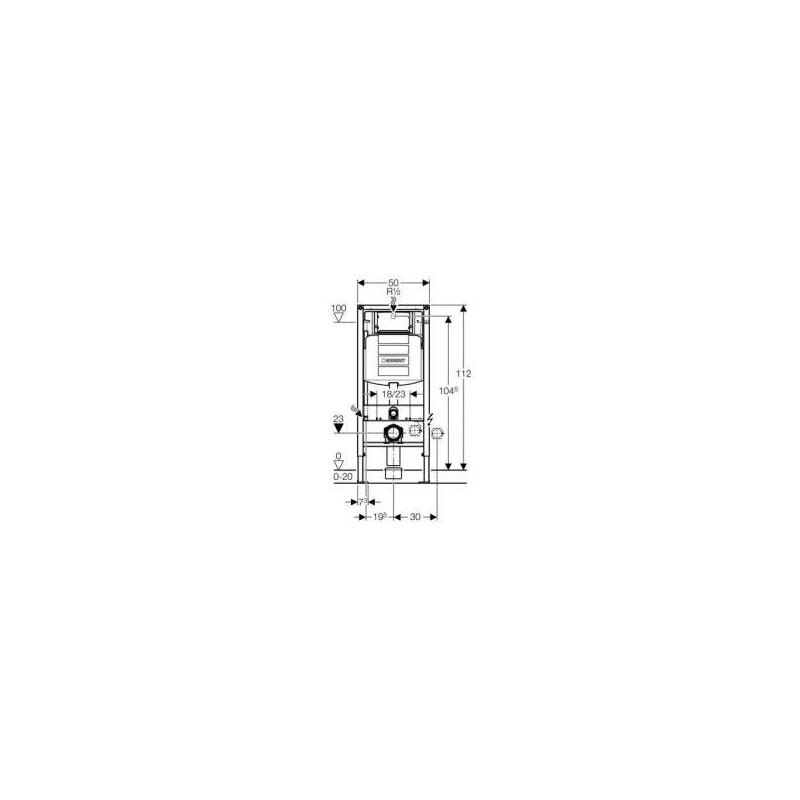

- Dimensions: 100“112 cm (H) x 50 cm (W) x 12 cm (D)
- Concealed cistern with front actuation
- Compatible with Geberit Sigma flush plates
- Fully insulated cistern prevents condensation
- Factory-set for immediate post-flush
- Tool-free installation and maintenance
- Rear or top-centre water connection
- Cut-to-length protection box for actuator plate
- Includes conduit for Geberit AquaClean feed pipe
- Electrical connection fastening option
Use:
- For drywall construction
- Suitable for part-height or full-height prewall and room-height installations
- For wall-hung WCs (EN 33:2011) with projection up to 62 cm
- Supports single, dual, or stop-and-go flushing
- For floor constructions 0“20 cm
Technical Details:
- ¸ 9 mm frame holes for wooden frame fixing
- Compatible with support brackets for ceramic WCs with small contact areas
- Galvanised, adjustable (0“20 cm), non-slip feet with rotatable plates
- Foot plates fit U-profiles UW 50, UW75, and Duofix rails
- Tool-free, adjustable-depth (45 mm) connection bend
- Sound-insulated fastening for connection bend
Included Components:
- R 1/2′ water connection with angle valve and hand wheel (MeplaFix compatible)
- Protection box for service opening
- 2 protection plugs
- WC connection set ¸ 90 mm
- 90° PE-HD connection bend ¸ 90 mm
- PE-HD adapter socket ¸ 90/110 mm
- 2 threaded rods M12
- Fixing material
Does not include:
Wall bracket for load-bearing wall (111.815.00.1)
Flush plate
.
